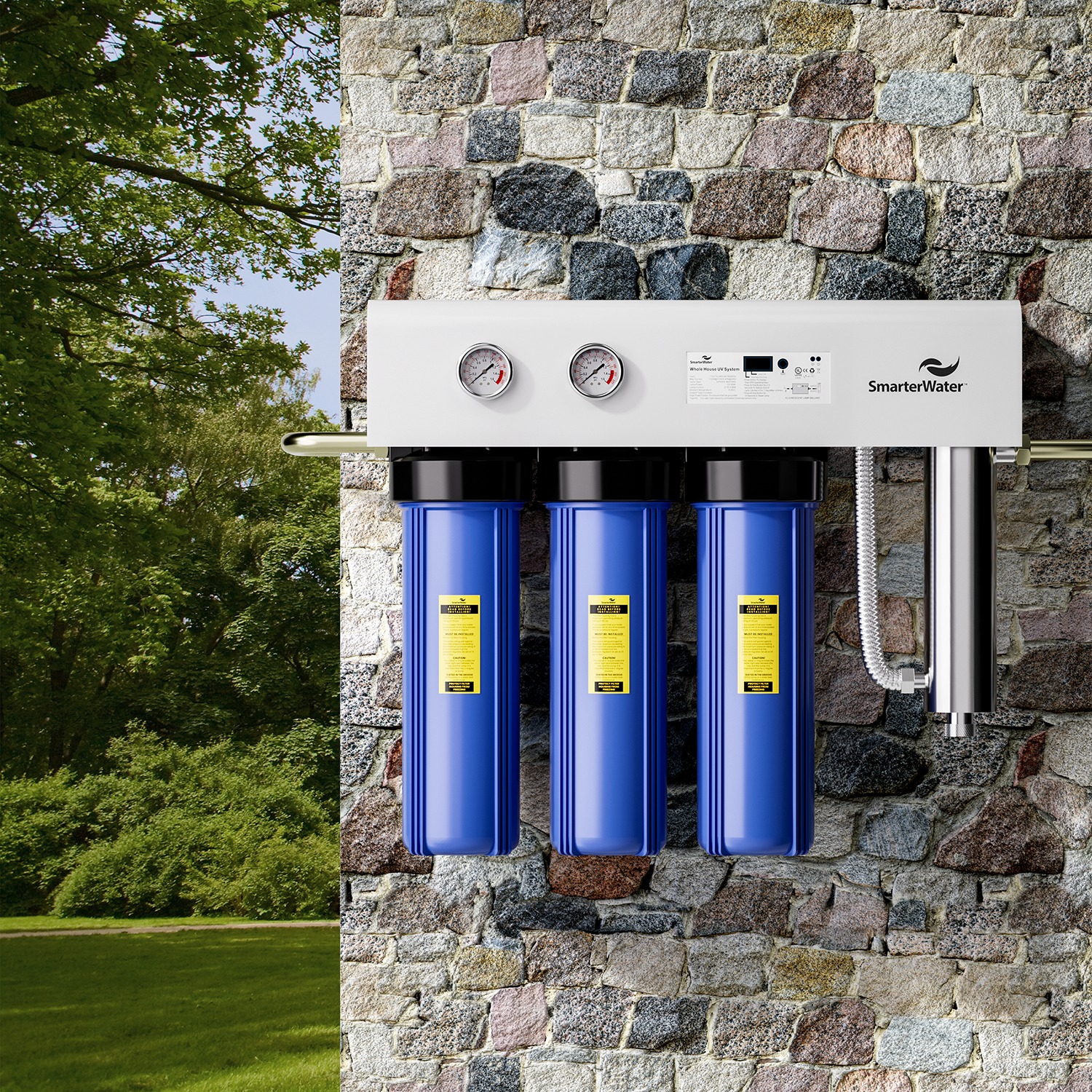

4-Stage: Whole House Filtration, Plus UV Disinfection (20″x4.5″ – Pro)

Eliminates Bacteria, Sediment & Chemicals – Ideal for Well & City Water

Model: SW320BBUV Category

Original price was: $1,108.39.Current price is: $832.70.

Available Upgrades


Smarter Water’s state-of-the-art Whole House Cartridge system  with Ulta Violet (UV) ensures your family’s water is safe and clean. This Wall-Mounted UV Water Treatment System. effectively eliminates 99.9% of bacteria and parasites, including E. coli and Salmonella. Additionally, the UV system reduces scale, sediment, silt, sand, and algae, providing comprehensive general-purpose filtration. Our user-friendly UV systems are easy to install and perfect for residential properties, offering reliable protection against harmful contaminants.


Features

  • Quick Installation: Fast plug-and-play setup saves you time and effort.
  • Durable Construction: Made from high-quality stainless steel, our system is built to last and can be mounted outdoors.
  • User-Friendly Design:
    • Powder-Coated Stainless Steel Cover: Features a window for easy viewing of the countdown timer and warning lights.
    • Hinged Lid: Simplifies lamp changes for maintenance.
  • Advanced Monitoring:
    • Lamp Countdown Timer & Alarm: Audible and visible alerts notify you when it’s time to replace the UV lamp.
    • Pressure Gauge: An oil-filled stainless steel gauge displays the current system operating pressure.
  • Effective Filtration:
    • 99.9% Bacteria Destruction: Eliminates harmful bacteria such as E. coli and Salmonella.
    • Hard Glass UV Lamp: Ensures long-lasting and reliable UV performance.
  • Environmentally Friendly: No chemicals are added to the water, maintaining natural water chemistry.

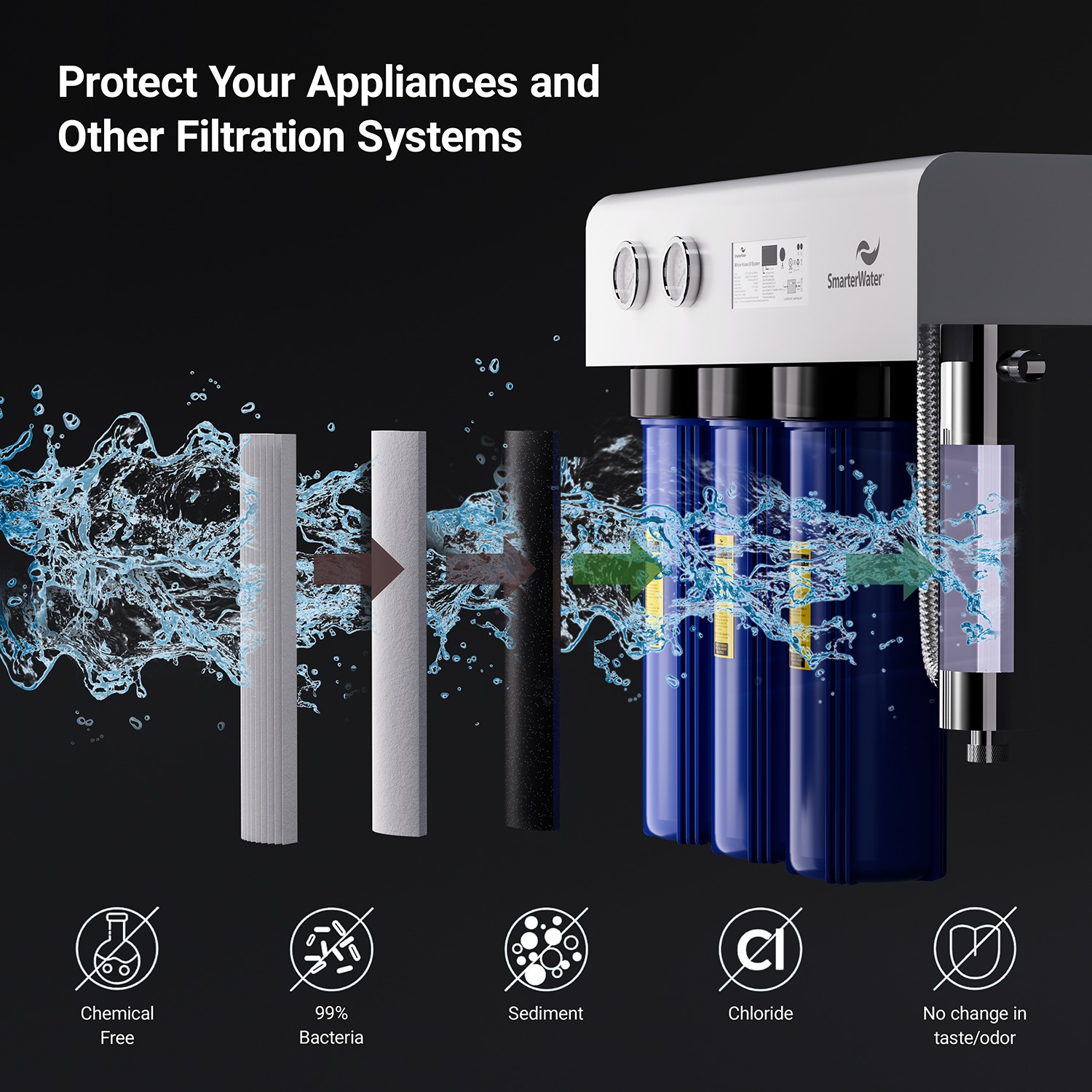

  • Enhanced Sediment Capacity: Triple filtration provides extra capacity for sediment removal.

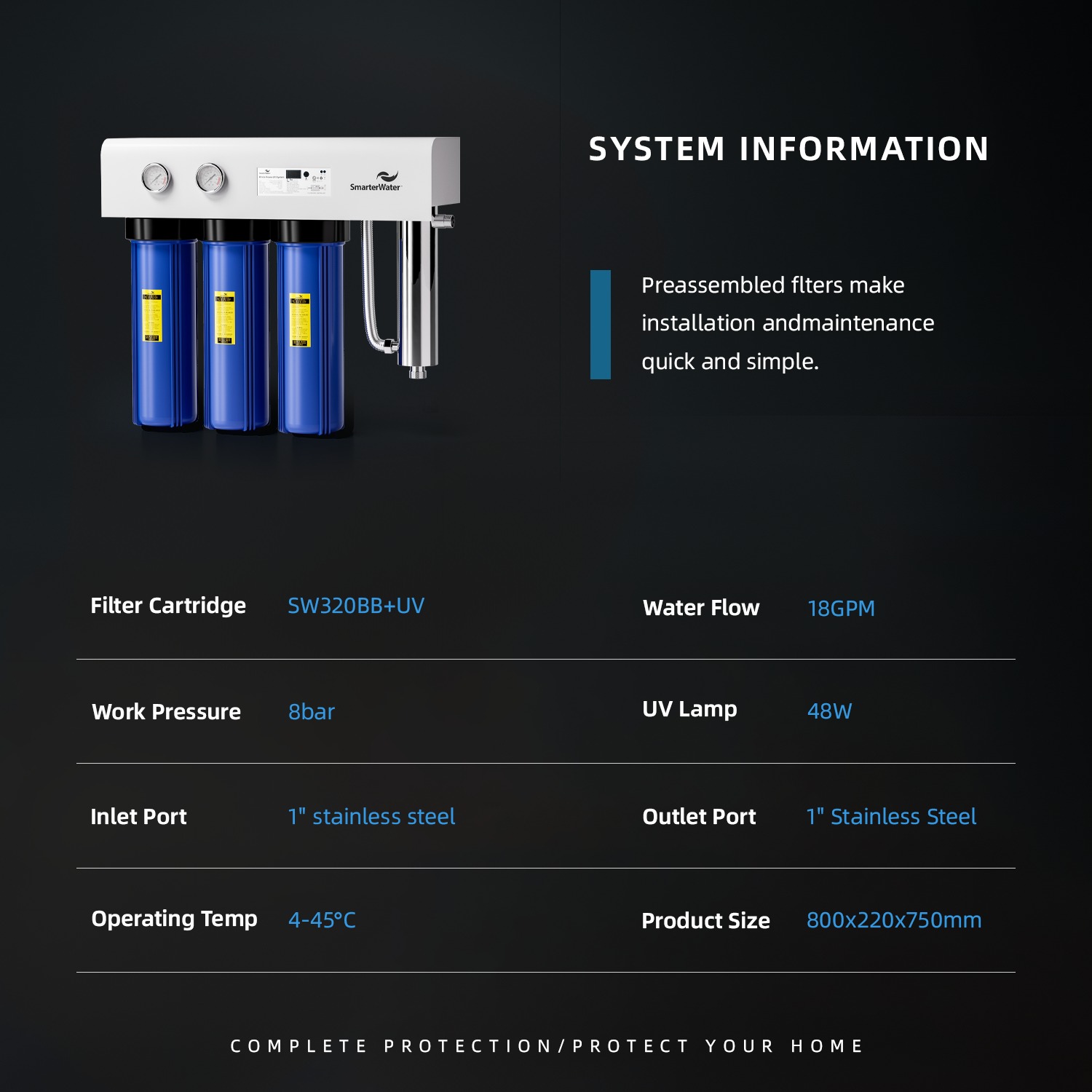

Technical Specifications

  • Maximum Pressure: 875 kPa
  • Maximum Temperature: 52°C
  • Maximum Flow Rate: 132 L/min
  • Connection Size: 1” BSP (25mm)
  • Lamp Wattage: 48W high-intensity

UV Dosage Performance

  • Flow Rate @ 40 mJ/cm²: 75 L/min
  • Flow Rate @ 30 mJ/cm²: 94 L/min
  • Flow Rate @ 16 mJ/cm²: 132 L/min
SATISFACTION GUARANTEE! We give you 6 month risk free.
Free Shipping on Whole House Systems
FINANCE WITH AFFIRM. Monthly Payments Available

Description

Manufactured using

CERTIFIED components.

FACTORY DIRECT SAVINGS

Save Over 50% Today!

LIFETIME WARRANTY

On Tanks & Valves*

SATISFACTION GUARANTEED

6 Month Money-Back!*

Frequently Asked Questions

The system overall is extremely low maintenance. You will need to replace the 5 micron filter (inside blue canister) every 6 to 9 months. We sell a 2 pack of filters for $40.18 which includes two sediment filters with o-rings and lube.

Each water filtration system is built to ensure you have no drop in water pressure. We build the systems based on the amount of full bathrooms you have in your home. If you have 1-3 full bathrooms then selecting our 1-3 bathroom drop down will give you a flow rate of 9 GPM while our 4-6 bathroom unit will give you 12 GPM and 7+ giving you 20 GPM. Be sure when comparing our whole house water systems to others that you ensure that you have at the very least 9 GPM flow rate or you may experience drop in water pressure in your home.

We’ve built our whole house water filtration systems for high quality water flow so you receive no drop in water pressure.  Below are the specifics of our GPM:

CF1 (1-3 Bathrooms) – 9 GPM
CF4 (4-6 Bathrooms) – 12 GPM
CF+ (7+ Bathrooms) – 20 GPM

If your private well water causes brown/orange staining or your water smells like rotten eggs, then you should consider installing our well water filter system. This system is ideal for wells in that it will remove iron, sulfur and manganese.

Springwell’s whole house water filter system is the best system for city water. With it’s state of the art design and highest grade coconut shell activated carbon combined with KDF media, you’re sure to have great tasting water at every tap. If you’re on a private well, then our whole house well filter system is what you need.

Additional information

Weight 65.1 lbs
Dimensions 34.84245 × 12.2047 × 32.2834 in
NUMBER OF BATHROOMS

1-3 Bathrooms, 4-6 Bathrooms, 7+ Bathrooms
